- Brand Name: FEELWORLD
- FEELWORLD Model: F5 Pro
- Supporting Language: Japanese,French,German,Italian,Spanish,English,Korean,Simplified Chinese
- Origin: CN(Origin)
- Brightness: 500cdm2
- Contrast: 1000:1
- Display Screen: 5.5″
- Certification: CE,FCC,RoHS
- Plug Type: EU plug
- Model Number: F5 Pro V4
- Resolution: 1920×1080 pixels
- Audio: Stereo Headphone
- Backlight: LED

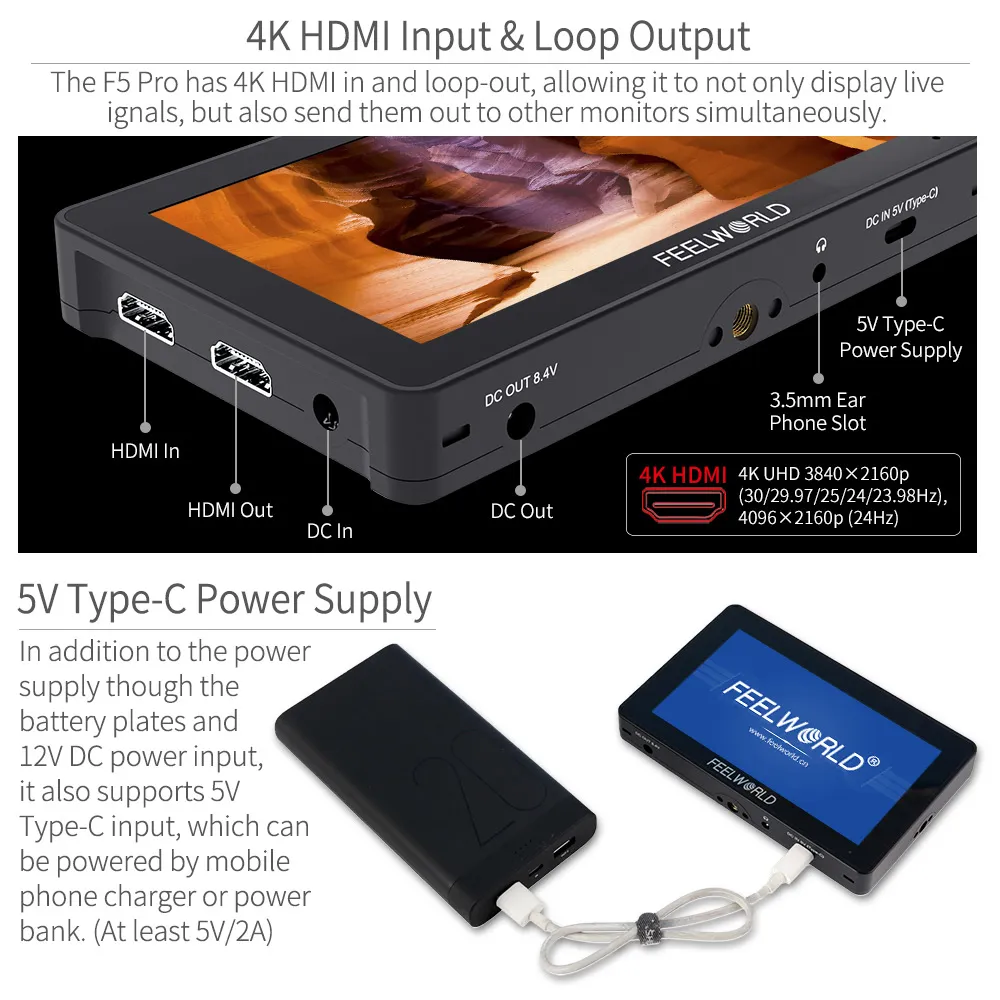

- Input: HDMI, 5V Type-C
- Output: HDMI, DC Output
- Input Voltage: DC7-24V
- Install Way: 1/4-20 thread points
- Pixel Pitch: 0.0639 (H) x 0.0213 (W) mm
- Power Connector: DC
- Power Consumption: ≤9W
- Screen: IPS Touch Screen
- Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)
- Working Temperature: -20°C~50°C
- Storage Temperature: -30°C~60°C
- Unit Size: 148Lx93Hx20D (mm)
- Unit Weight: 245g

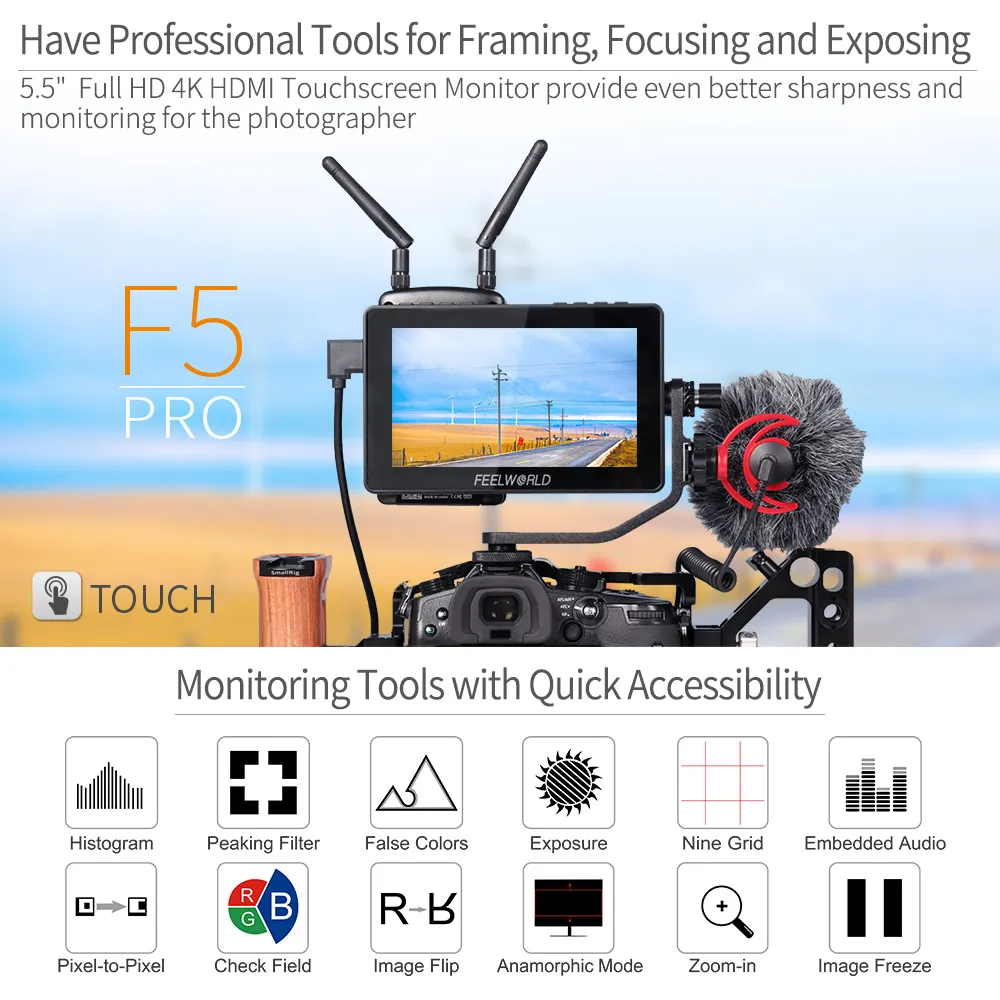

Accurate waveform monitoring
When you need to analyze image quality more accurately than simply looking at the picture then use F5 PRO V4’s built in waveform monitoring! Choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode.
The Brightness Histogram is a quantitative tool to check the picture brightness.The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright)and a stack of the number of pixels at each level of brightness along the vertical axis.
Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the putline color between red, green, blue according to different tone of the subject.
Convenient Mounting – Tilt Arm
Every F5 Pro V4 monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the F5 Pro V4 monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4″-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.
Portable Sunshade, Easy Install
The F5 Pro V4 monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.
The Product Warranty of our products is ONE year.
We will check the goods quality before shipment. If there are some unexpected problems happen, we hope to solve the problems with buyer through friendly ways:
1. If it is quality problem, buyer must provide photos or video or other evidences to seller for evaluation and identification.
2. Man-made damaged, buyers should take full responsibility.
3. Product quality processing program:
The buyer return the goods to us and responsible for returned shipping costs. After we receive the goods, we will send a new product to buyer and pay for the resend shipping cost.
Zhangzhou Seetec Optoelectronics Technology Co., Ltd is a high technology enterprise, foucsing on the research and application of LCD display technology, design, manufacture, marketing, and delivers of LCD monitor products. We have two Brand, FEELWORLD and SEETEC. FEELWORLD Focuses on Electronic View Finder, 3G-SDI On-Camera Monitors, HDMI On-Camera Monitors, Rack Mount Monitor, Jib Crane Monitor, Wireless FPV Monitor, Open-Frame Industrial Display, SKD Modules, Touch Screen Monitors, USB Touchscreen Monitors, and industrial PC and so on. SEETEC focuses on Broadcast Grade LCD Monitors, Industrial Grade Monitor, Broadcast Converters, and USB Capture.
