Sony RM-IP10 Overview
Remotely control your BRC remote cameras with the RM-IP10 IP Remote Controller from Sony over an IP network. The RM-IP10 can control up to 112 BRC cameras using a combination of IP and serial communication, and up to five RM-IP10 controllers can operate on the same LAN.
The RM-IP10 operates on your LAN using its RJ45 port and works in a standard VISCA IP network, providing control for up to seven BRC cameras. It can also control cameras using RS-232 and RS-422 VISCA serial communication. The controller can store up to 16 preset combinations such as zoom, pan/tilt position, focus, and backlight to save time making camera moves and adjustments.

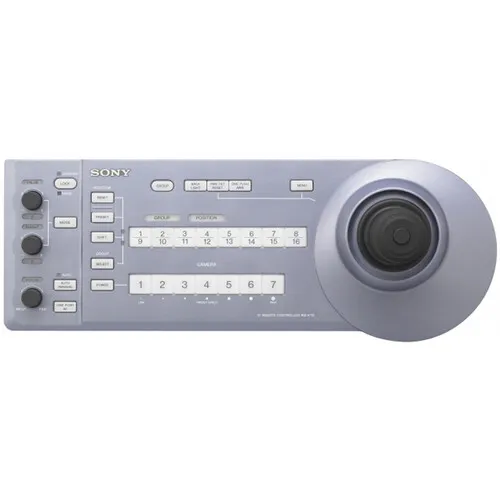

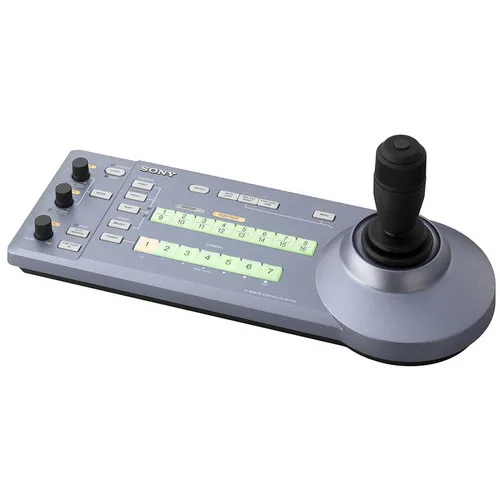

Available controls include a joystick for pan/tilt/zoom operations, knobs for brightness/white balance/focus, buttons for group/reset/backlight/autofocus/auto white balance, and seven camera-select buttons.
Included with the controller is a power supply, a terminal connector, and the Windows software needed to get started. Read more below about camera compatibility and computer requirements.
Compatibility
BRC-H900
BRC-Z330
BRC-Z700It is also compatible with the following cameras when they are fitted with the BRBK-IP10 option board:
BRC-X400
SRG-X400
SRG-X120
BRC-H900
BRC-H900
BRC-H800
BRC-X1000
SRG-300SE
SRG-300H
SRG-120DU
SRG-120DH
SRG-120DS
It is also compatible with the following camera when it is fitted with the BRBK-IP7Z option board:
BRC-Z700
OS Requirements
Windows 8.1 Pro, 32-/64-bit
Windows 10 Pro, 32-/64-bit
Computer Requirements
1 GB or more RAM
50MB or more hard drive space
10/100 RJ45 Ethernet port
Reviews
There are no reviews yet.
