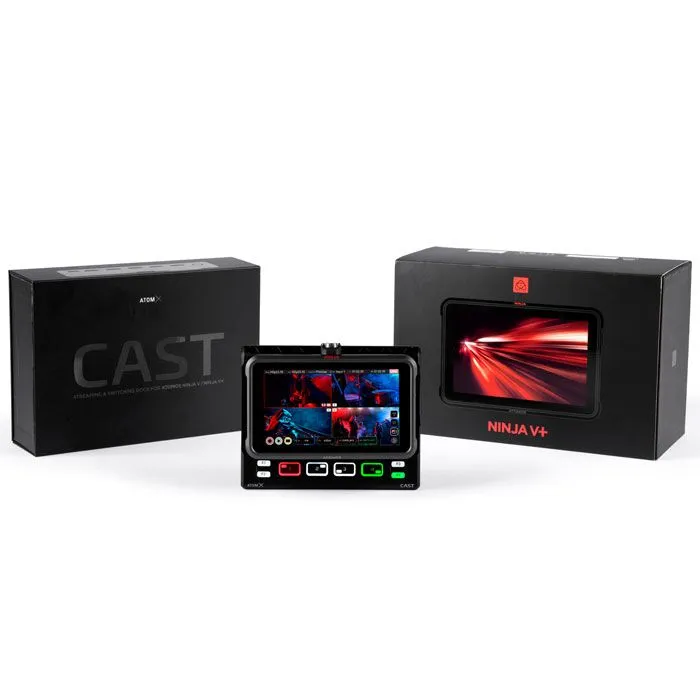

Atomos Ninja V+ Switch & Stream Kit

Atomos Ninja V+ Switch & Stream Kit.

The 5.2″ Ninja V+ on-camera monitor inputs up to 8K raw video from your camera and features SSD recording, HDMI input, L-series battery support, ProRes format and H.265 codec support, 1000 cd/m² brightness, anamorphic de-squeeze, and the optional AtomX SDI expansion module. The AtomX CAST features a built-in program monitor and allows you to output HDMI video directly for streaming to the internet and switching with other HDMI sources.

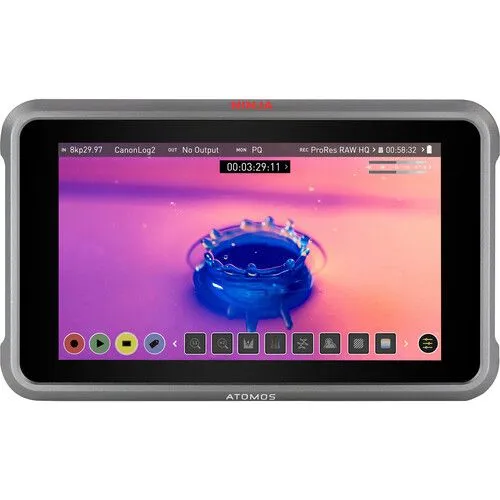

Atomos Ninja V+ 5.2″ 8K HDMI H.265 Raw Recording Monitor
If you’re shooting with an 8K camera, then why not record in 8K raw format using the Ninja V+ 5.2″ 8K HDMI H.265 Raw Recording Monitor from Atomos. The Ninja V+ is the same on-camera monitor/recorder as its predecessor the Ninja V 5″, but the Ninja+ now features a 5.2″ display and records and plays back up to 8K raw video to and from purpose-built mini-SSDs.

The Ninja V+ can record Apple ProRes raw up to 8K30 or DCI 4K120 directly from the sensor, and it is compatible with select cameras such as the Canon R5. It also includes a H.265 free-to-download license to record with the high-quality, low-bandwidth codec for up to 10-bit recording in ProRes 4:2:2. Display features include a 10-bit screen with a brightness of 1000 cd/m² AtomHDR technology for accurate monitoring of your log gamma footage, and support for popular log formats from Sony, ARRI, Canon, JVC, Panasonic, Nikon, RED, Sony, and Z CAM cameras.

Built to withstand the rigors of production, the Ninja V+ features an aluminum chassis and powers from a single L-series battery. Additional features include a variety of on-screen exposure analysis, framing, anamorphic de-squeeze, and focus assist tools. Separately available AtomX SDI, AtomX SYNC, Connect 4K modules, and an SDI Raw license key further expand your Ninja V+ capabilities.

New in the Ninja V+

• A new chip supports higher frame rates and resolutions
• ProRes raw recording over HDMI up to 4K120 with Z Cam E2 and E2-M4
• ProRes raw recording over HDMI up to 8K30 with cameras such as the Canon R5 (more camera integrations coming from mid-2021)
• H.265 free-to-download license to provide 10-bit recordings in 4:2:2, 8-bit recordings in 4:2:2 and 4:2:0
• XQ: Bit rates up to 350 Mb/s
• MQ: Bit rates up to 200 Mb/s
• LQ: Bit rates up to 100 Mb/s

5″ Daylight Viewable Screen
The Ninja V+ features a 5.2″ IPS LCD screen that is illuminated by a bright 1000 cd/m² LED backlight, making it possible to view in daylight without requiring a hood. Plus, the screen is also color-calibrated from the factory to ensure accurate image representation.

Recording Codecs Including Raw over HDMI

• Record Apple ProRes and ProRes Raw with select cameras at rates up to 8K30 with select cameras and up to DCI 4K120
• Enables ProRes Raw capture with smaller, more cost-effective, mirrorless cameras
• Avid DNx compatibility enables wide camera and editing software compatibility

Bright 5.2″ Display with AtomHDR

• Display ten+ stops of dynamic range of your camera’s log image with AtomHDR
• 1920 x 1080 display with 1000 cd/m² brightness for daylight viewing
• 10-bit color processing and user calibration
• Supports custom LUTs

DSLR and Mirrorless Camera Support
Compatible with virtually any HDMI source including cameras from:
ARRI, Canon, FUJIFILM, Nikon, Panasonic, RED, Olympus, Sony, and Z-CAM

8K30 and 4K120 Capabilities
Record 8K30 or DCI/UHD 4K ProRes raw at rates up to 120 fps, including 24 and 25 fps for a more filmlike aesthetic. All recordings are stored as high-quality Apple ProRes or Avid DNxHR files with 10-bit 4:2:2 chroma subsampling. A variety of bit rates are available to fit your project and storage needs.

SSD Recording
Record to standard 2.5″ SSD drives or to compact AtomX SSDmini drives offering up to 2TB storage. SSDmini drives offer read speeds up to 550 MB/s and write speeds up to 500 MB/s, capturing up to 150 minutes of 4K video on a 1TB drive.

User Calibration
Calibrate with the separately available X-Rite i1 Display Pro tool to maintain optimal color accuracy.

Anamorphic De-Squeeze
The Ninja V+ supports anamorphic de-squeeze, allowing you to comfortably view anamorphic footage with 2x, 1.5x, 1.33x, or Panasonic 8:3 ratios.

Selectable Markers
A wide variety of frame lines include standard versions plus 1:1, 4:5, 1:91:1, and 9:16 options.

Game Capture
Simple, standalone solution for UHD 4K, HDR, and high frame rate game capture and review.

Audio Input/Output
Input/output audio via HDMI or add external audio via the 3.5mm Line In/Mic In port; output audio using the 3.5mm headphone port for convenient audio monitoring.

Optional Expansion Modules

• AtomX SDI Module for 12G-SDI input and output and HDMI/SDI cross conversion for up to 8K30 ProRes raw video
• SDI Raw activation key
• AtomX SYNC for wirelessly synced, timecoded multicamera capture
• Atomos Connect 4K for HDMI to USB conversion for streaming up to 1080p60
• SDI Raw is now supported on Sony FS700, F5, and FS5 cameras as of firmware update 10.71

Supported Log Formats

• ARRI Log C
• Canon C-Log, C-Log 2
• FUJIFILM F-Log
• JVC J-Log
• Nikon N-Log
• Panasonic V-Log
• RED LogFilm
• Sony SLog2, SLog3

HDR Recording (Gamut)

• ARRI Log CEI160, CEI200, CEI250, CEI320,
• ARRI LogCEI400, CEI500, CEI640, CEI800
• ARRI LogCEI1000, CEI1280, CEI1600
• Canon C-Log, C-Log 2, C-Log3
• FUJIFILM F-Log
• HLG
• JVC J-Log1
• Nikon N-Log PQ10K
• Panasonic V-Log
• RED LogFilm, RG310, RG312
• Sony SLog2, SLog3

HDR Monitoring (Gamma)

• ARRI ALEXA Wide Gamut
• BT.2020
• Canon Cinema, DCI P3, DCI P3+, BT2020
• JVC LS300
• Nikon N-Log PQ10K
• Panasonic V-Gamut
• Rec. 709
• RED DRAGONcolor, DRAGONcolor2
• REDcolor2, REDcolor3, REDcolor4
• REDWideGamut
• Sony S-Gamut, S-Gamut3, S-Gamut3.Cine
• Sony SLog2, SLog3

HDR Monitoring (Gamut)

• ARRI ALEXA Wide Gamut (mapping to Rec. 709/BT.2020/DCI-P3 on loop-out)
• BT.2020
• Canon Cinema
• DCI-P3, DCI-P3+
• Panasonic V-Gamut
• Rec. 709
• RED DRAGONcolor, DRAGONcolor2
• REDcolor2, REDcolor3, REDcolor4
• REDWideGamut
• Sony S-Gamut, S-Gamut3, S-Gamut3.Cine

Time-Lapse
Record a time-lapse video as a single file. Available in ProRes, DNx, and ProRes Raw over HDMI or SDI. Time-lapse sequence options include:

• Number of frames/seconds captured
• Intervals between frames/seconds/minutes/hours
• Duration of sequence in frames/seconds/minutes/hours

Monitor Leica L-Log Gamma in BT2020 Gamut

• Supports Leica SL 25 only
• Support for other models available in future updates

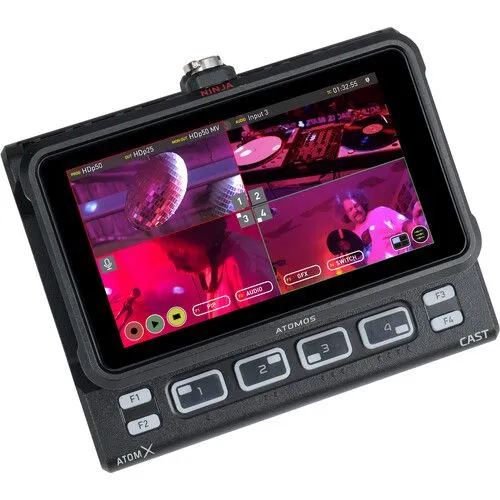

Atomos AtomX CAST for Ninja V/Ninja V+
Convert your Ninja V or Ninja V+ 5″ monitor into a full multi-camera broadcast studio switcher with the AtomX CAST from Atomos. The AtomX CAST takes its name from “broadcast”, and it allows you to switch up to four HDMI video sources and output it to a variety of destinations such as an external monitor, a recorder, a separate switcher, or to a live streaming computer. Applications include corporate, house of worship, event, family, or studio production environments.

The CAST is specially designed to mount onto the back of the Ninja V/V+ monitor, and it provides four HDMI inputs that support a mix of different resolutions up to 1080p60. The touchscreen monitor can view a single image, Picture-in-Picture, or 4-Up modes, and you can also add logos and graphic overlays. It can send Program, Preview, Picture-in-Picture, and 4-Up displays to the HDMI output. You can select the source for monitor/output using the four source buttons, and you can also select the source using the monitor touchscreen. There are also four programmable function buttons to perform specific shortcuts.

The monitor allows you to preview your broadcast while simultaneously outputting to a recorder, a monitor, a projector, or when using the optional AtomX Connect for live streaming using a computer. It also supports recording output to ProRes and Avid DNx formats. It is compatible with most streaming platforms such as Skype, Zoom, Teams, and more using UVC with the included USB Type-C cable. The CAST is powered using the power adapter included with your Ninja V/V+, and it passes the power on to the monitor through the battery mount.

Compatibility
Docking station that mounts onto back of Atomos Ninja V or Ninja V+ monitor

4-Input Switcher
Switches up to four HDMI inputs to one HDMI output

Mixed Feed Use
Switch progressive and/or interlaced video sources of mixed resolutions and frame rates up to 1080p60

Overlays & Graphics
Overlay logos, lower thirds, graphics

Atomos Connect Streaming
Can be used with the Atomos Connect module for live streaming with UVC

Multiviewing
View single image, Picture-in-Picture, or 4-Up display on Ninja V monitor

HDMI Output
Can output mirror, Preview, Program, Picture-in-Picture, or 4-Up via HDMI

Stream, Record & Monitor
Simultaneously record, stream, and monitor

Buttons & Touchscreen
Source select buttons or can use the monitor’s touchscreen to select source

Applications

• Live streaming
• Simultaneously recording live events
• Multicamera productions
• Corporate events and meetings
• Music, awards, and performance events
• Weddings and family events
