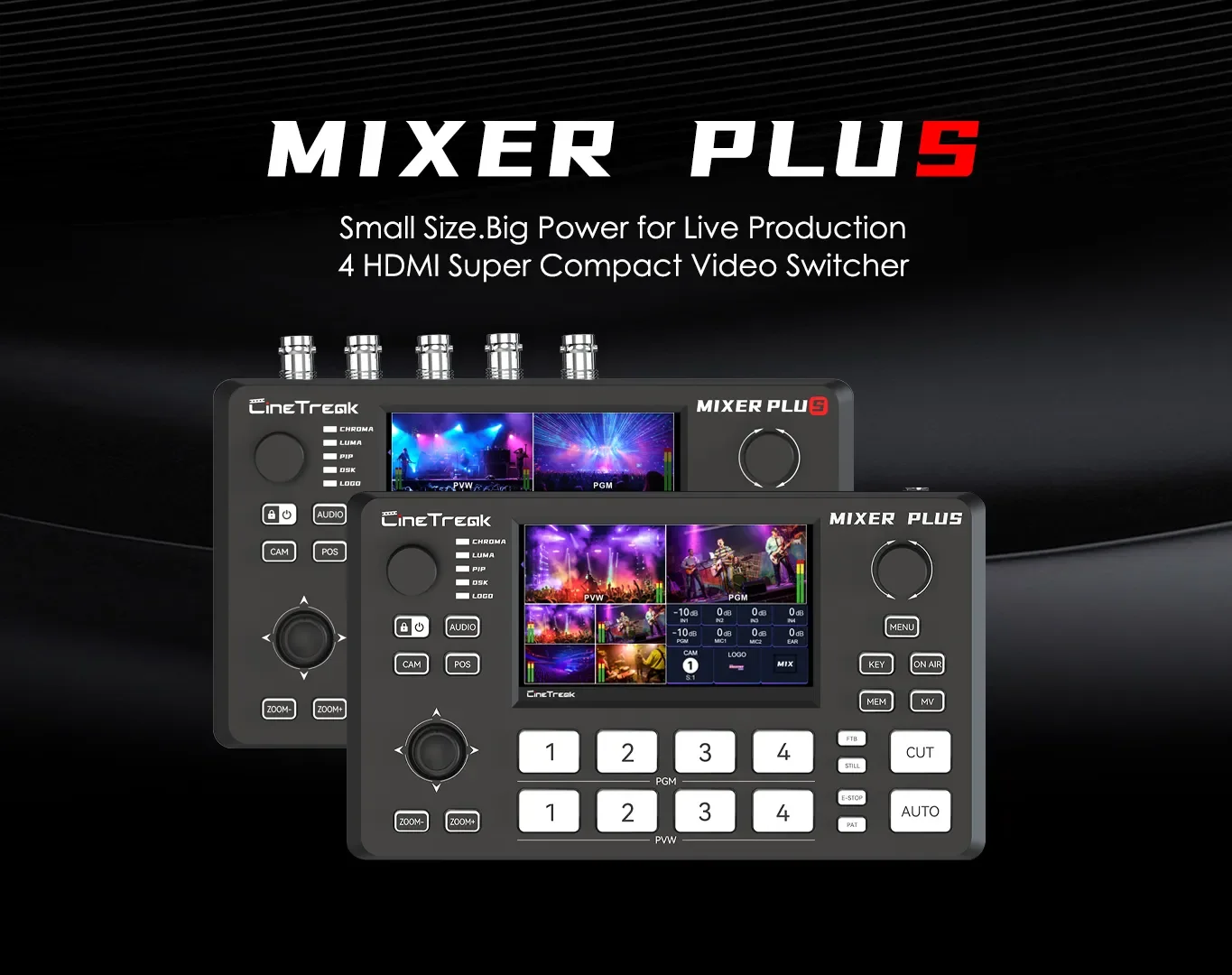

CineTreak Mixer Plus 4-HDMI Live Video Switcher Support PIP/PTZ Cam Control for Live Streaming Video Podcast and Gaming with 4″ Display

Professional Live Production Tools

Mixer Plus With up to 30 built-in transition effects—including Mix and DIP—users can create professional scene changes with adjustable durations. Audio flexibility is ensured through dual microphone inputs and a headphone monitoring jack, enabling real-time sound control.The switcher also supports PTZ camera control via VISCA over IP, allowing connection of up to four cameras with multiple presets per device. Additional production tools include chroma key, luma key, picture-in-picture (PIP), downstream keying (DSK), and logo overlays.Equipped with a USB 3.0 UVC interface for uncompressed HD streaming and a USB 2.0 port for importing media files like logos and backgrounds, Mixer Plus and Mixer Plus SDI provide a complete, versatile switching solution tailored for professional content creators and live production teams.

Multi-Camera Inputs for Professional Workflows

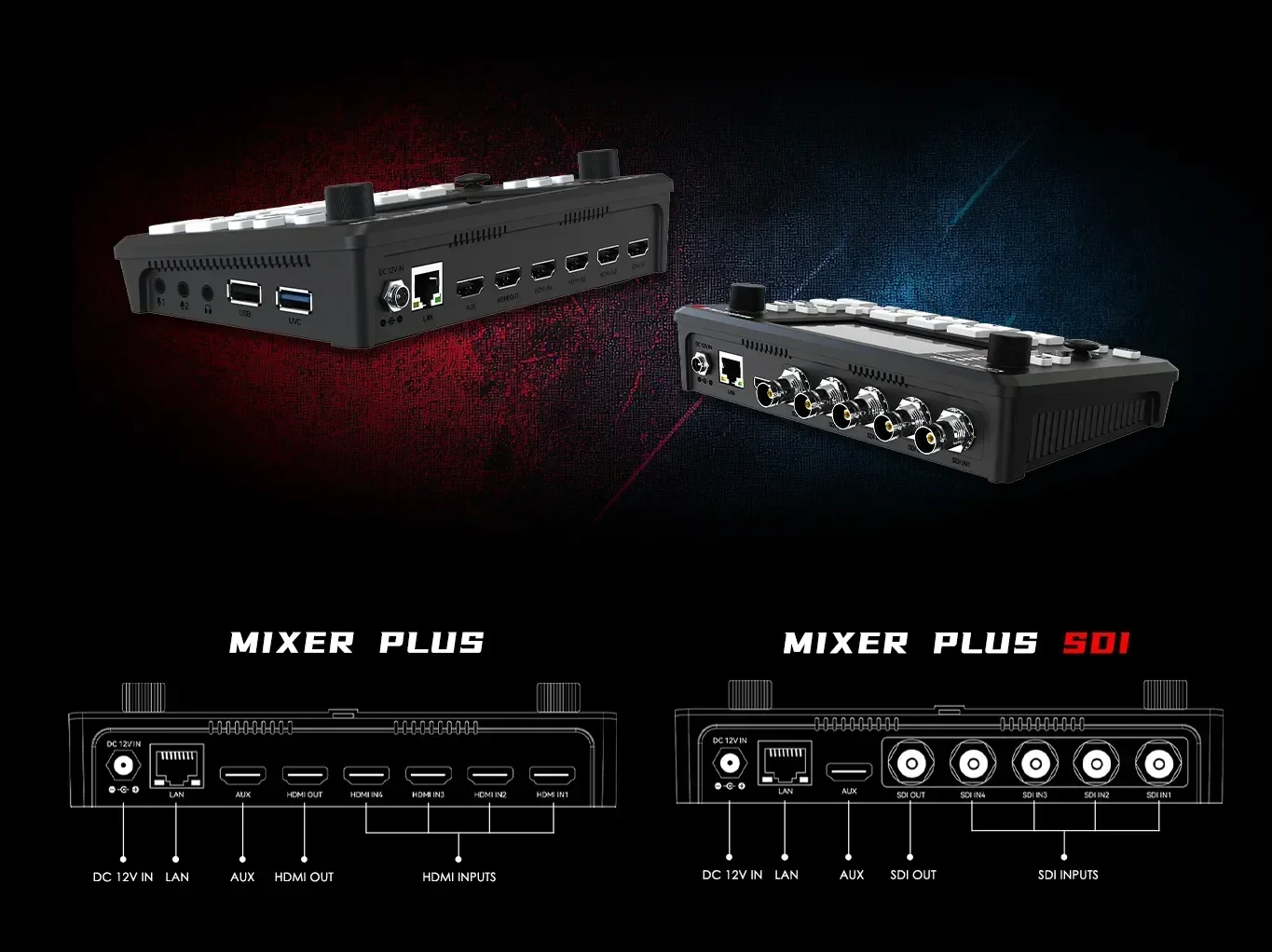

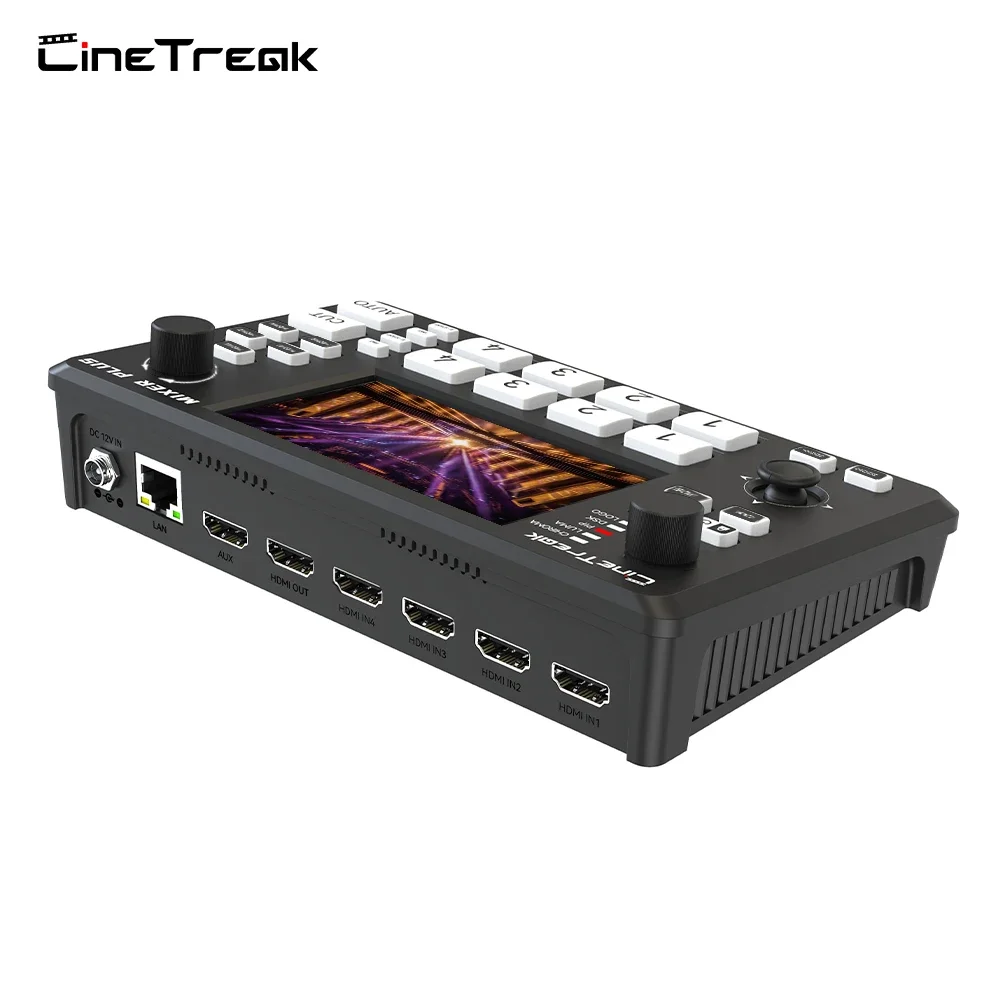

Multi-Inputs Flexibility- Mixer Plus is a compact and full-featured video switcher available in both HDMI and SDI input versions, designed to meet the needs of professional live production environments. The HDMI version comes with four HDMI input ports, while the SDI model features four SDI inputs, both supporting high-quality video signal switching. Each unit offers one program (PGM) output and one AUX output. The AUX output supports multi-view previews as well as customizable video signal outputs, offering exceptional flexibility during live broadcasts.Both versions are equipped with a LAN port that can be used to control PTZ cameras or to connect with our official control software on PC, enabling full access to the device’s functions. Additional audio features include two line-in audio inputs and a headphone output for real-time audio monitoring. The built-in USB 2.0 port allows easy import of media files such as logos, backgrounds, and still images, while the high-speed USB 3.0 port functions as a UVC interface, enabling uncompressed HD video capture directly into OBS and other live streaming software. Whether you prefer HDMI or SDI workflows, Mixer Plus provides a reliable, flexible, and user-friendly solution for multi-camera live production.

Flexibly Configured AUX for Every Production Need

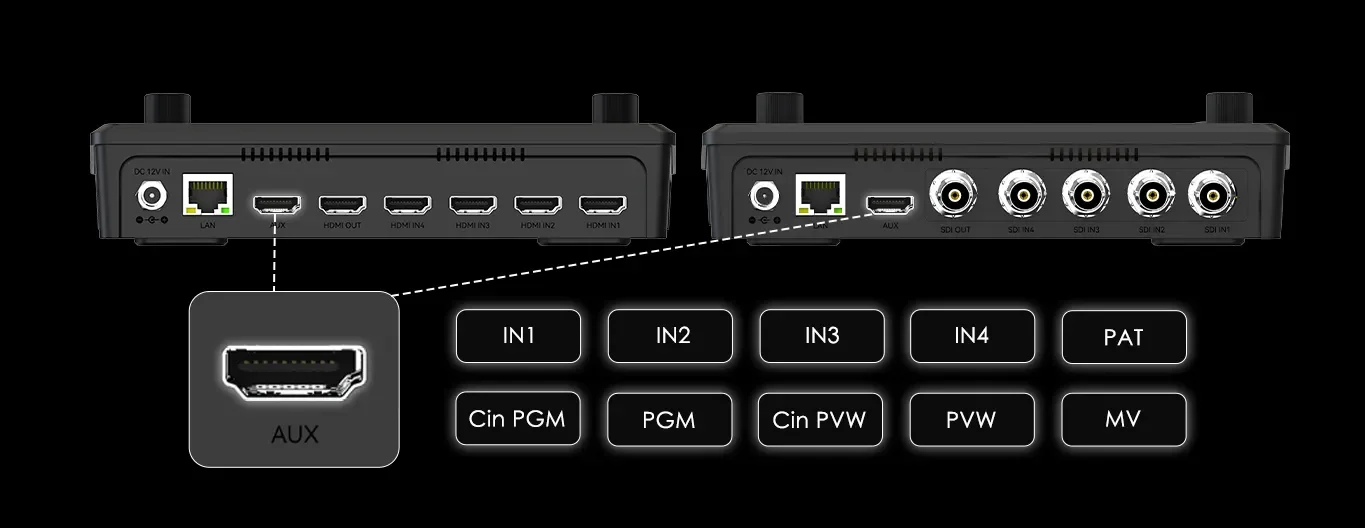

Customizable AUX HDMI Output- Mixer Plus features a versatile AUX HDMI output that allows users to customize the output signal from multiple options, including IN1, IN2, IN3, IN4, PGM, Clean PGM, PVW, Clean PVW, PAT, and Multi View—offering maximum flexibility for different production needs.

Multi-View Mode for Efficient Live Production

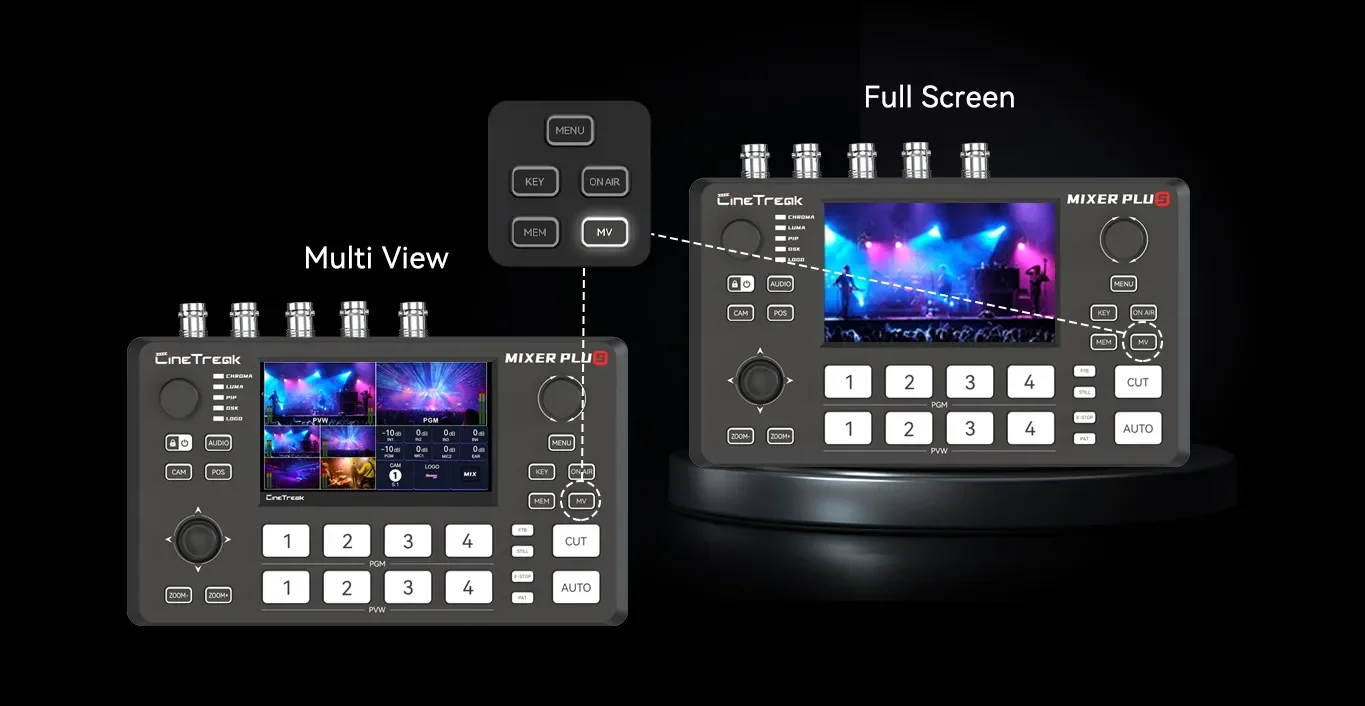

Multi View (MV) Monitoring- The Multi View (MV) feature allows users to monitor all input sources simultaneously on a single display. It provides real-time previews of each video input along with dedicated Program (PGM) and Preview (PVW) windows, resolution indicators, and audio level meters. This enables precise signal monitoring and seamless switching during live production. Ideal for multi-camera setups, the MV mode enhances operational efficiency and ensures professional broadcast quality.

Flexible Audio & Smooth Transition Effects

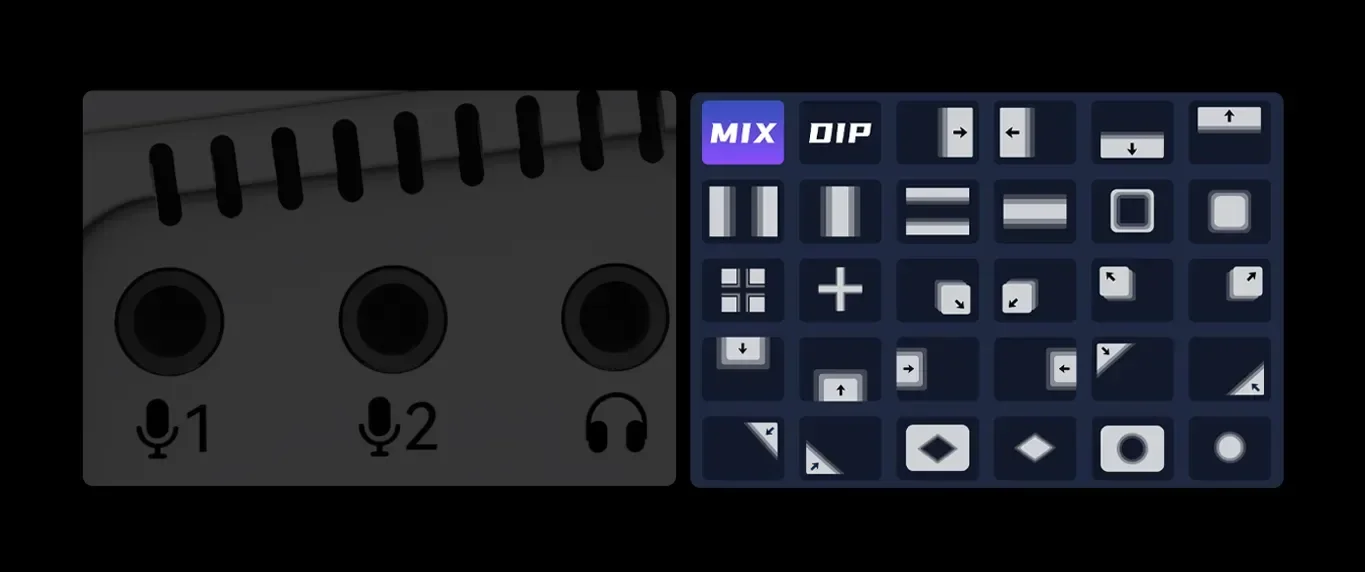

Dual Mic Input & Audio Monitoring &Built-in Transition Effects- Mixer Plus offers two mic inputs and a headphone monitoring jack for flexible audio sourcing and real-time sound monitoring. It also supports up to 30 built-in transition effects, including Mix and DIP, with customizable transition durations.

Precise VISCA over IP PTZ Control

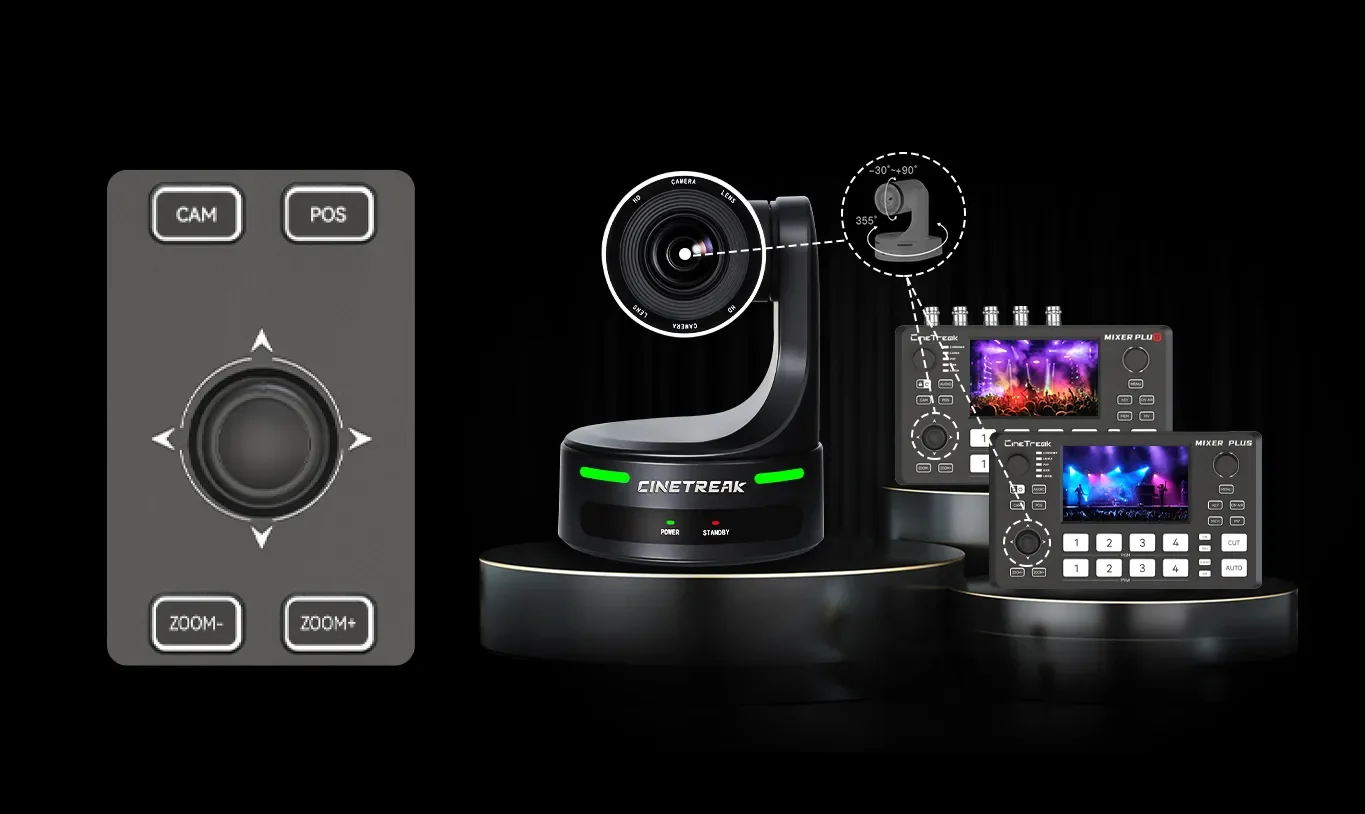

PTZ Camera Control via VISCA over IP- Mixer Plus supports professional PTZ camera control via the VISCA-over-IP protocol, allowing control of up to four PTZ cameras. Each camera supports up to four position presets, enabling fast and efficient scene switching during production.

Comprehensive Layer Control

Mixer plus combind with all the keying and overlay tools you need for professional live production.

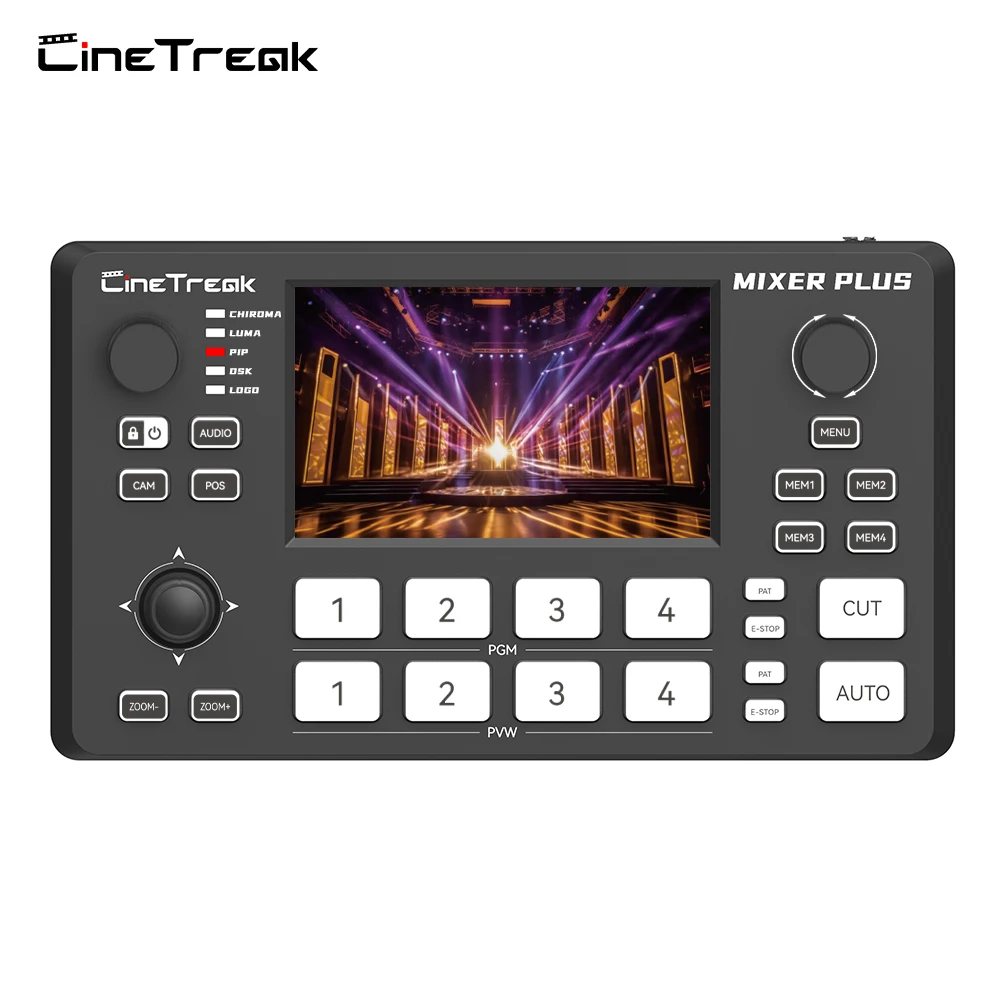

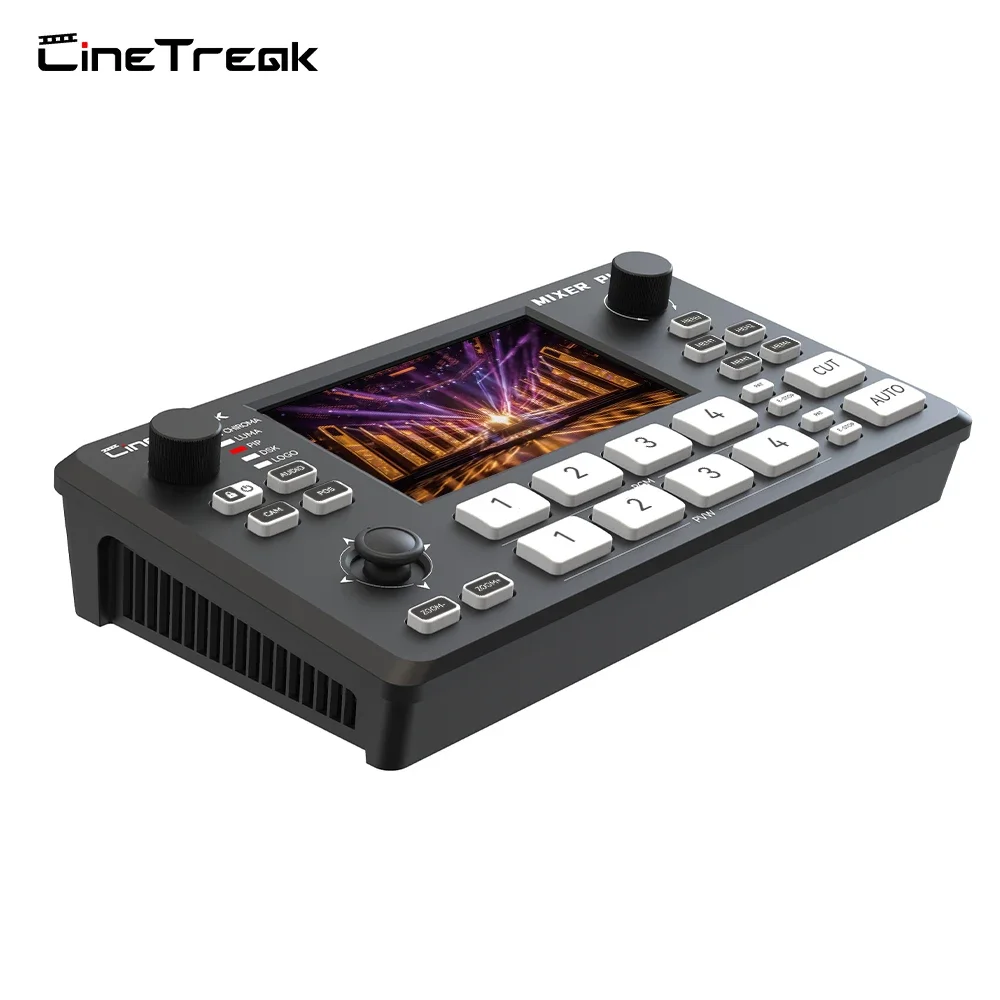

Our panel provides instant access to six essential functions: Chroma Key, Luma Key, Picture-in-Picture (PIP), Downstream Keyer (DSK), Logo Insert, and Mask/Border Control. Toggle each one on/off with clear status indicators for efficient and flawless layer management.

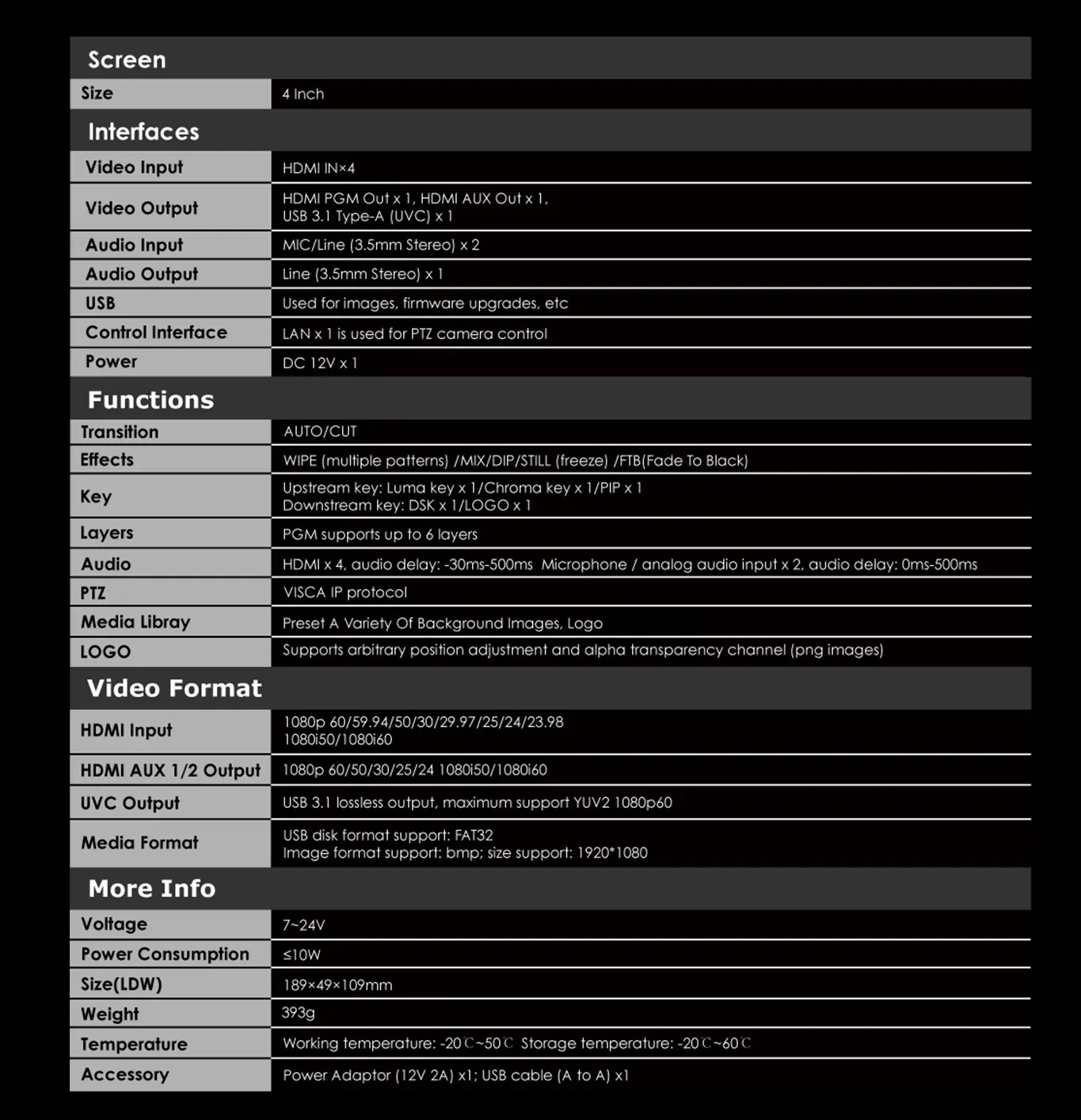

Specifications
